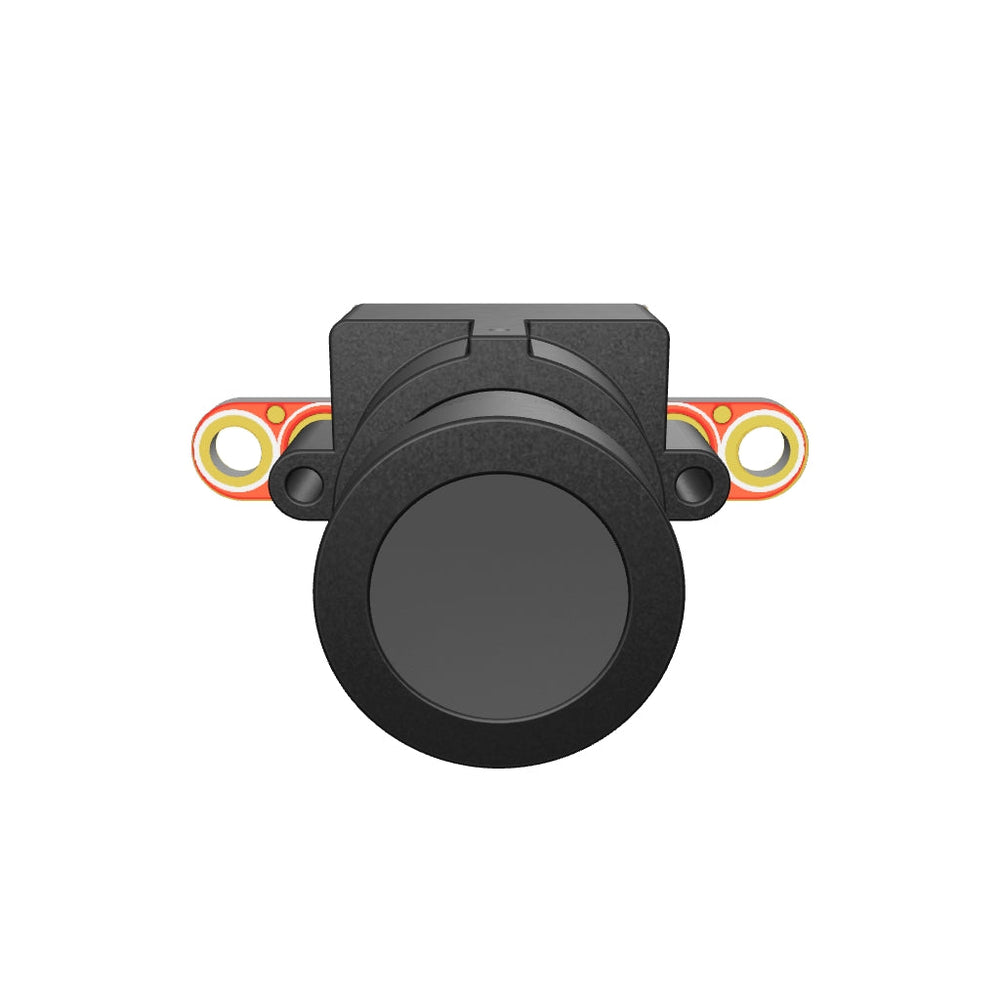

PS5520 5MP HDR Camera Module

PS5520 5MP HDR Camera Module

Name: PS5520 5MP HDR Camera Module
Brand: Kickstarter
SKU: OMV-MOD-HDR-V1
Price: 25.0 USD
Availability: OutOfStock

Price

$25.00 USD

Title

Default Title

Options

No reviews

Description
Details
General Info
Downloads

About

This module is only compatible with the OpenMV N6.

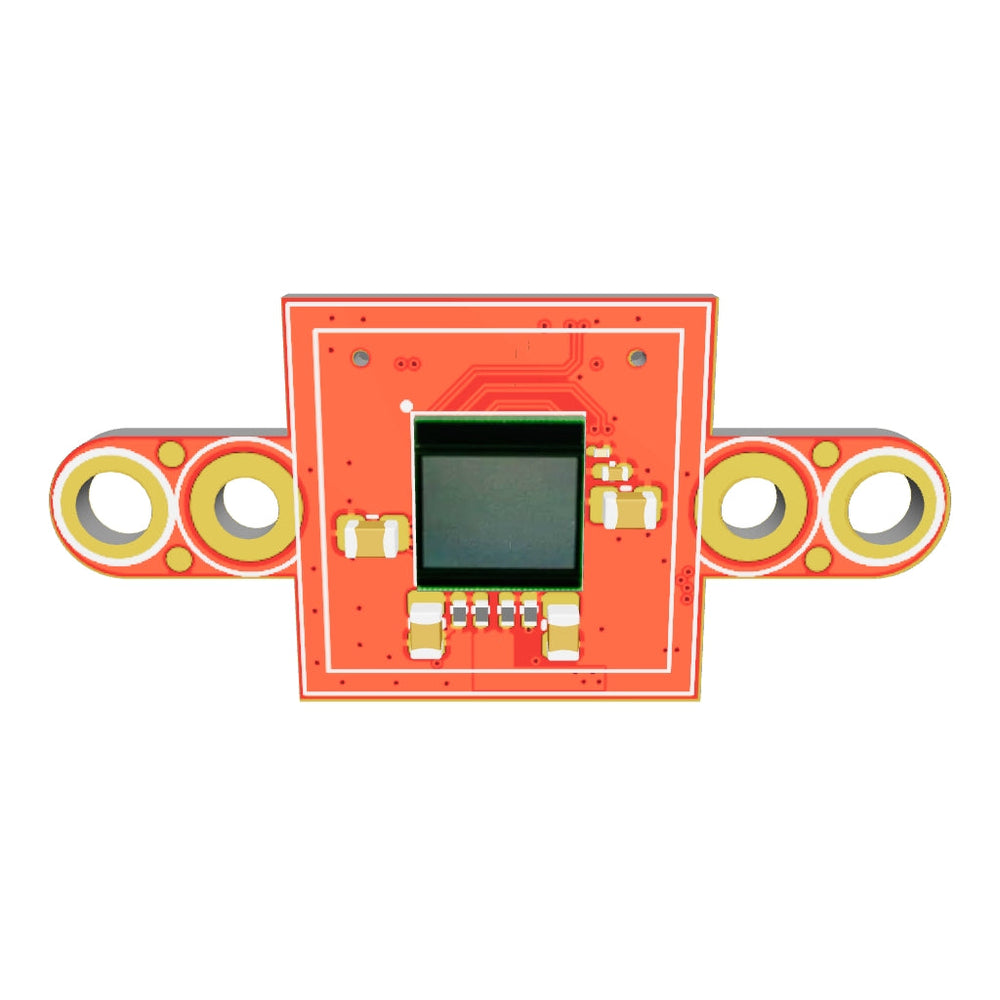

The PS5520 is a highly integrated CMOS image sensor that outputs 2592x1944 (5MP) pixels with a rolling shutter readout. It embedded new FinePixel™ and HDR sensor technology to perform excellent image quality and single-shot high dynamic range synthesized image output.

Applications

The HDR Camera Module can take high-resolution pictures indoors and outdoors without sunlight blowing out the image. This makes is useful for any application where sunlight may appear in the field of view.

Specs

Camera Info:

PS5520 5MP Color HDR Rolling Shutter Sensor
5MP: 2592x1944 HDR @ 30fps
4MP: 2560x1440 HDR @ 30fps
2K2K: 1944x1944 HDR @ 30fps
1080p: 1920x1080 HDR @ 45fps
Optical Format:
1/2.5-inch (5MP 4:3)
1/2.7-inch (4MP 16:9)
1/2.9-inch (2K2K 1:1)
Pixel Size: 2.20um (H) x 2.20um (V)
CRA: 12.6°
Sensitivity @ 530nm: 2400 mV/Lux-sec
SNR: 39 dB
Dynamic Range: 85 dB

Lens Info:

Max Image Circle Diameter: 6.7mm
Focal Length: 2.8mm
Aperture: F2.0
Optical/Mechanical TTL: 17.50
Back Focal Length: 5.37mm
Flange Focal Length: 4.53mm
TV Distortion: <-24%
Relative Illumination: >70%
CRA: 14°
Storage/Operating Temperature: -40°C to 85°C
Format: 1/3"
Mount: M12*0.5
IR Cut Filter: 650nm (removable)
@420nm-600nm: Tavg > 90%
@650nm +/- 10nm: T=50%
Dust Level: IP4X
Structure: 6G + 1BG

Power Consumption

217mW @ HDR LTM 5Mp30

Dimensions

Length: 35 mm
Width: 25 mm
Height: 28 mm

Temperature Range

Storage Temperature: -40°C to 85°C
Operating Temperature: -30°C to 85°C

Shipping Information

Country of Origin: China
HS Code: 8473.30
Weight: 10 g
UPC: 608275911160
SKU: OMV-MOD-HDR-V1

Datasheets

Camera Datasheet: PS5520 (.pdf)
Voltage Regulator Datasheet: TLV62568A (.pdf)
